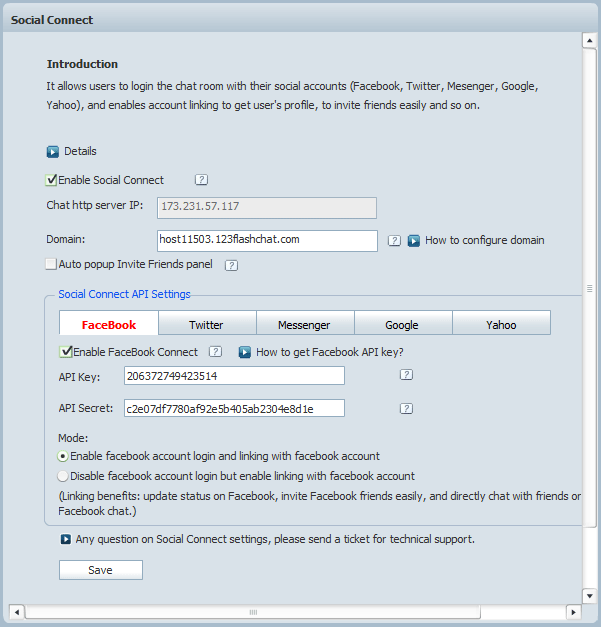

Social Connect feature allows chat users to login the chat room with their existing social accounts (Facebook, Twitter, MSN, Yahoo, Google), and enables linking and sharing. Once linking established, the user's profile, friends and some related information will be imported to chat room automatically.

Chat http server IP: The chat server IP will be auto-detected.

Domain: Enter the corresponding domain to the auto-detected chat server IP.

Auto Popup Invite Friends Panel: Automatically popup the invite-friends panel for social sign-on chat users at their first attempt to enter a chat room.

Social Connect API Settings
Five tabs, we'll elaborate them one by one.

Facebook

API Key: After applied a Facebook API, please enter Facebook Application-> Settings to get the APP ID/APP Key.
API Secret: After applied a Facebook App, please enter Facebook Application-> Settings to get the APP Secret.

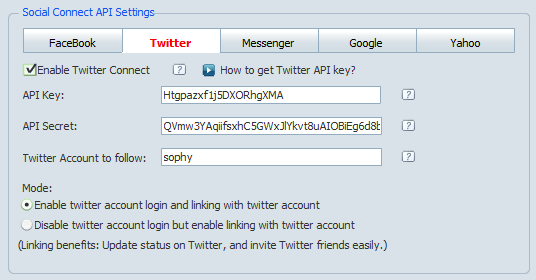

Twitter

API Key: After applied a Twitter App, please enter Twitter Application-> Details to get the Consumer Key.
API Secret: After applied a Twitter API, please enter Twitter Application-> Details to get the Consumer Secret.
Follow: Enter a Twitter ID for chat users to follow.

 :

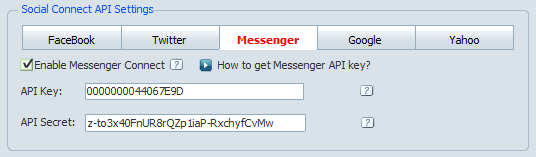

Windows Live Messenger

API Key: After applied a MSN App, please enter Windows Live My Apps -> Client ID to get the API Key.
API Secret: After applied a messenger APP, please enter Windows Live My Apps -> Client secret to get the API Secret.

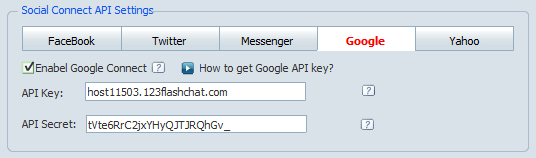

Google

API Key: After applied a Google account, please enter domain -> Manage your domain-> OAuth Consumer Key.
API Secret: After applied a Google account, enter domain -> Manage your domain-> OAuth Consumer Secret.

 :

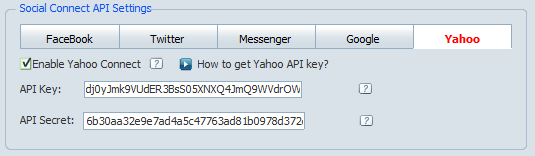

Yahoo

API Key: After applied a Yahoo ID, please enter Yahoo Application-> APIS And Service to get Consumer Key.
API Secret: After applied a Yahoo ID, please enter Yahoo Application-> APIS And Service to get Consumer Secret.

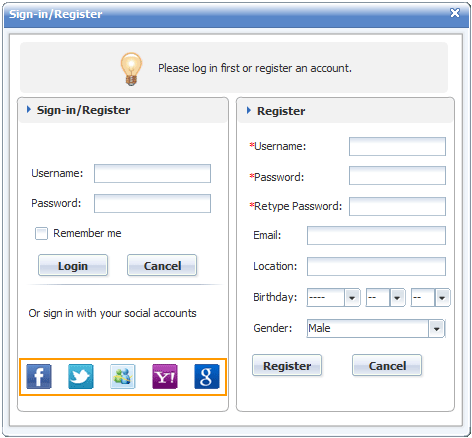

By enabling these social connect types, users may click one of the services to login.

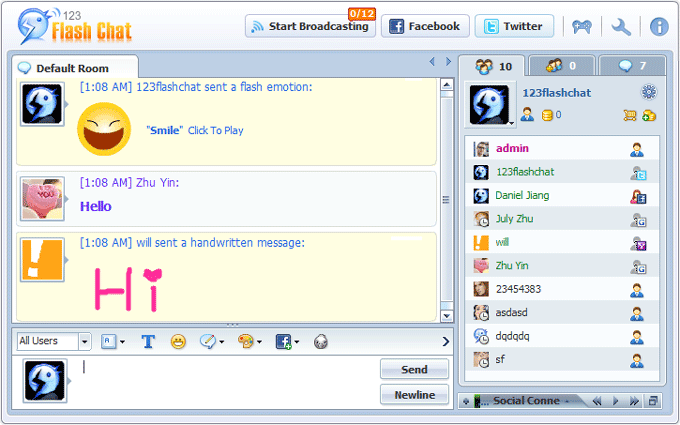

And the social-logon users will be indicated in the user list with a tiny logo.
Social connected users have the same ability with the registered users. Furthermore, they are allowed to invite friends on Facebook and Twitter to the chat room, update status on Facebook and Twitter with the activities in the chat room, and directly chat with Facebook friends in Facebook chat.
