User Manual

Home HomePre page Avatar-Chat Module | Audio/Video Module Next page

Audio/Video Settings


Basic

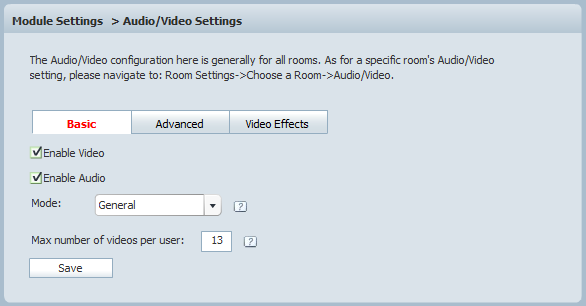

For General Mode and Push to Talk Mode:

General Video Setting of 123FlashChat, Flash Software, PHP Chat, Chat Script

Enable Video / Enable Audio
With audio/video module enabled, you can add audio and video chat feature to your chat room.

General Mode
The video of the publisher will play right after his/her video icon is clicked by the viewer.

Push to Talk Mode
The video publisher has to push a button to talk unless the hands-free button is clicked, and he/she can be heard by everyone in the current room.

Max number of videos per user (for General mode and Push to Talk mode)
This item defines the maximum video window number for a user to open.

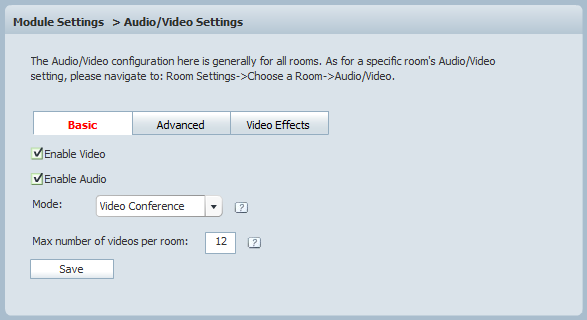

For Video Conference Mode:

Video Conference Mode General Settings of 123 Flash Chat, Chat Software

Video Conference Mode
Video publishers will become broadcasters, whose videos will automatically show at top of the room and broadcast for everyone.

Max number of videos per room (for Video Conference mode)
This item defines the maximum video window number in a chat room.

Assignable Mode
Users will need to push a button to be in the list to apply for publishing the video. Admin can approve the users' requests to be in the 1st, 2nd or 3rd video.

Advanced

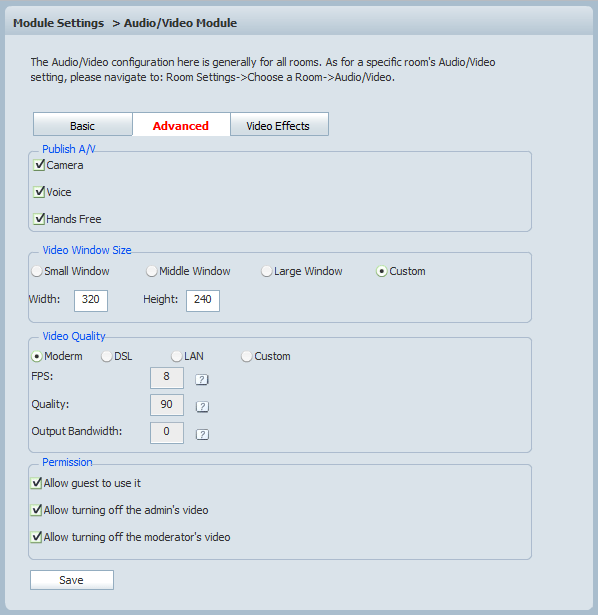

For General Mode and Push to Talk Mode:

Advanced Audio/Video Settings of 123 Flash Chat, Chat Software

Allow guest to use it:
With this item checked, guest can use video function.

Allow turning off the admin's video
With this item unchecked, a user may stop an admin from watching his video.

Allow turning off the moderator's video
With this item unchecked, a user may stop a moderator from watching his video.

FPS: Integral number. It's the request frequency (rate) of the webcam capturing data. Frame rate is most often expressed in frames per second.

Quality: Video quality: Integral number, 1 to 100 means the tolerable video quality changes from poor to good. Quality=0 means auto-adjust, the video quality will automatically adjust to avoid over consumption of bandwidth.

BandWidth: The maximum bandwidth, expressed in KB/S. The formula to get a right video bandwidth: video window width * video window height * frame rate (FPS)/8/1024= bandwidth (KB/S). If bandwidth=0, that means unlimited bandwidth can be used for the particular Flash video.

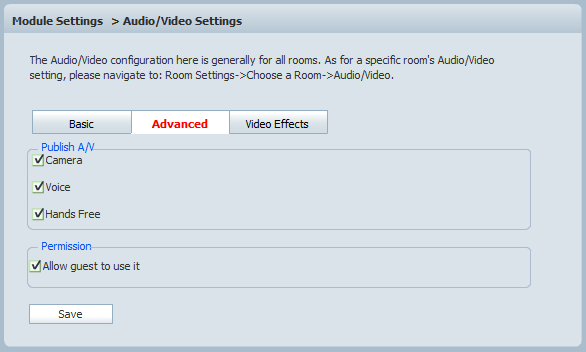

For Video Conference Mode and Assignable Mode:

Advanced Video Conference Mode Settings of 123 Flash Chat, Chat Software

Allow guest to use it:
With this item checked, guest can use video conference function.

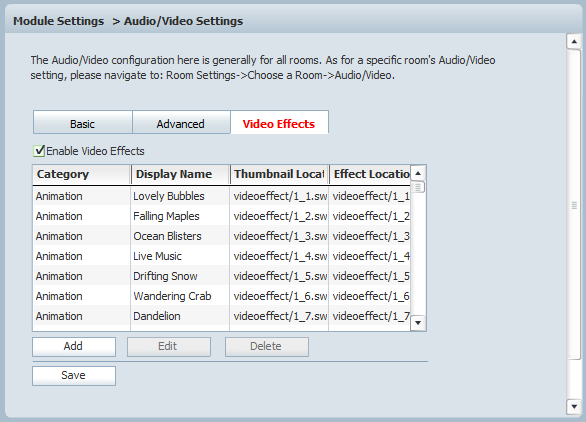

Video Effects

Video Effects Settings of 123 Flash Chat, Chat Software

Enable/disable video effects here, and manage categories and video effects.
The default categories are: animation, mask, frame, color and text.

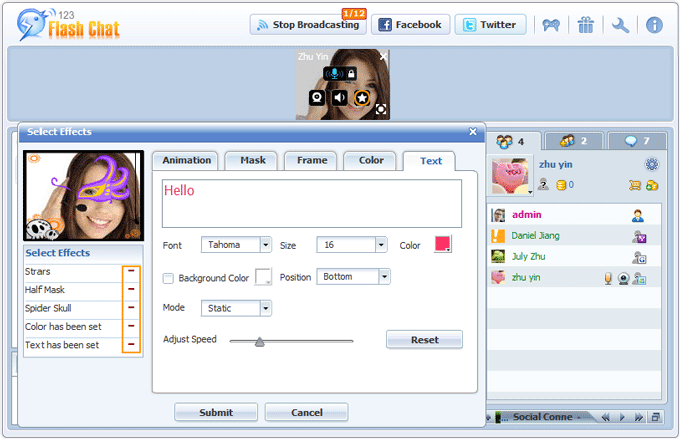

Video Effects Setting in Video Panel of 123FlashChat, Flash Software, PHP Chat, Chat Script

Related links:

Module Settings
